Monolithic hard-metal cylindrical mills roughening

material: sintered carbide
helical line angle 30° standard
z = 4 two cogs to the centre / 1 cog to the centre
Number of cogs -4

  • Fine structure of VHM

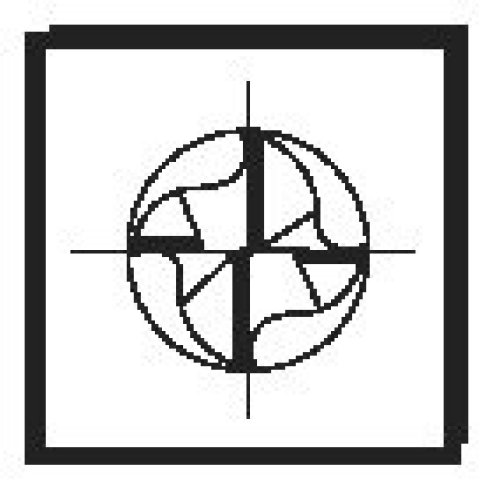

  • Four-edged cutter

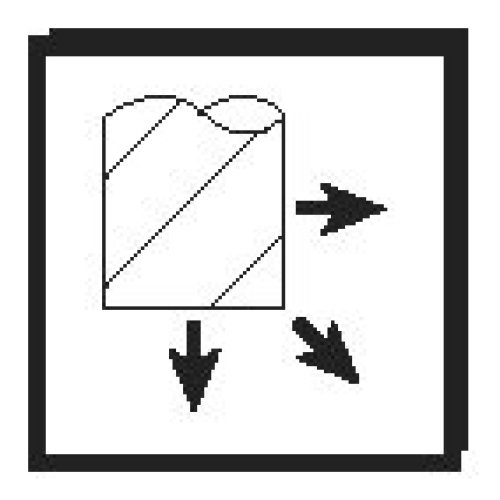

  • Milling in all directions
  • Clamping - smooth shank

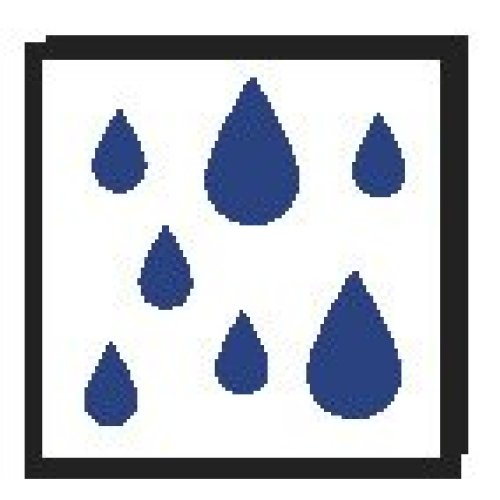

  • Cooling

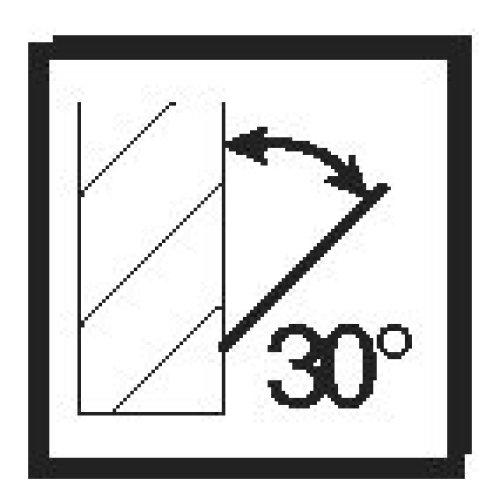

  • Helix angle 30°

You will be asked for adding the blank attributes when placing the goods in the basket.

Geometry of front blades for immersion in the material, roughing mill with under-ground serrated profile. The wide cutting cogs can be re-ground without profile change. For the highest demand on cutting performance and increased volume of material cut-off.

  • dimensions L1, L2, d1, d2 - can be adapted to customer request
  • cutting conditions - see Cutting Conditions
  • express completion is subject of surcharge, see Sharpening
  • manufacture from 1 piece up
  • a discount is provided in the case of purchase of multiple tools of the same type.


Mass-produced dimensions:

Product code
d1 h10 mm
d2 h6 mm
I2 mm
I1 mm
I3 mm
Weldons
Price excl. VAT
Purchase
14.42.062
6,00
6,00
10,00
51,00
€ 38.89
pcs
14.42.081
8,00
8,00
16,00
59,00
€ 43.83
pcs
14.42.082
8,00
8,00
25,00
70,00
€ 48.27
pcs
14.42.101
10,00
10,00
14,00
67,00
€ 59.12
pcs
14.42.102
10,00
10,00
26,00
80,00
€ 66.51
pcs
14.42.121
12,00
12,00
15,00
74,00
€ 76.35
pcs
14.42.122
12,00
12,00
26,00
84,00
€ 83.23
pcs
14.42.141
14,00
14,00
16,00
76,00
€ 94.55
pcs
14.42.142
14,00
14,00
26,00
84,00
€ 100.46
pcs
14.42.161
16,00
16,00
20,00
82,00
€ 104.90
pcs
14.42.162
16,00
16,00
32,00
93,00
€ 127.53
pcs
14.42.163
16,00
16,00
52,00
130,00
82,00
€ 143.33
pcs
14.42.182
18,00
18,00
36,00
110,00
€ 144.81
pcs
14.42.201
20,00
20,00
25,00
93,00
€ 147.26
pcs
14.42.202
20,00
20,00
36,00
105,00
€ 171.88
pcs
14.42.203
20,00
20,00
65,00
150,00
100,00
€ 196.49
pcs
14.42.251
25,00
25,00
36,00
110,00
€ 280.24
pcs
14.42.321
32,00
32,00
38,00
110,00
€ 329.48
pcs
